SID 2019: 지문인식이 가능한 유기광다이오드(OPD)를 포함하는 OLED 디스플레이
OLED display incorporating organic photodiodes for fingerprint imaging
https://onlinelibrary.wiley.com/doi/full/10.1002/jsid.786
Abstract

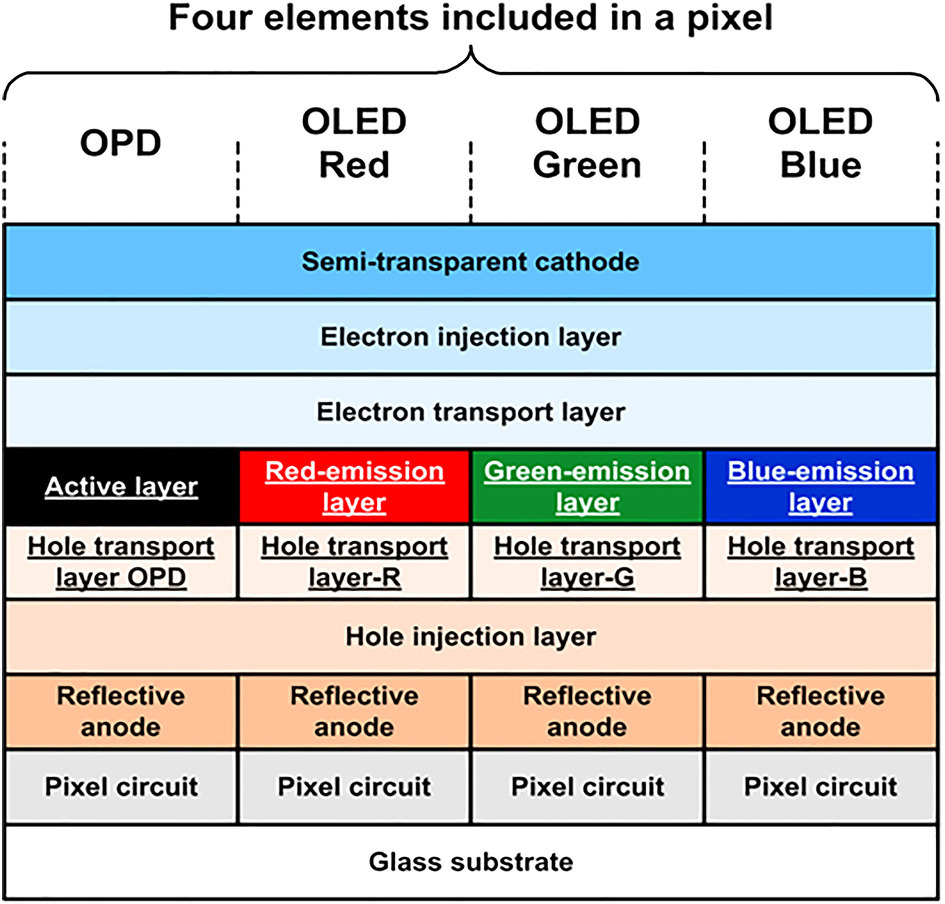

This paper introduces and demonstrates a display that incorporates an organic image sensor formed in the same pixel as organic light‐emitting diodes through side‐by‐side patterning. The potential applications of this display include touch sensing, scanning, and fingerprint identification at any location on the entire display screen, without the necessity of an external module.

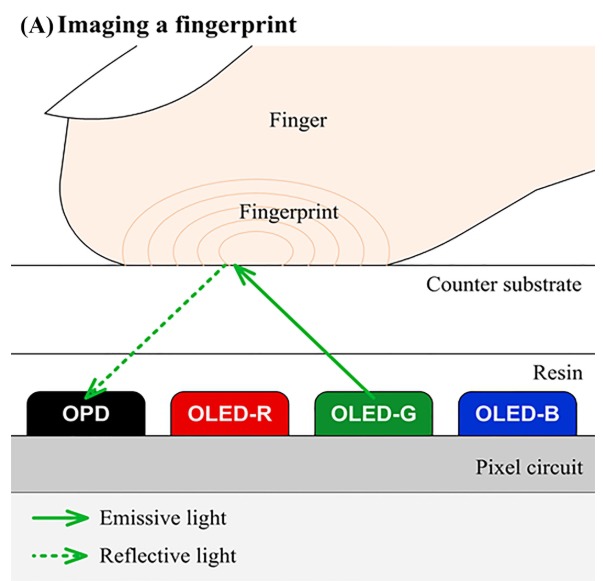

Detection by the OPD. OLED, organic light‐emitting diode; OPD, organic photodiode
Fingerprint image capturing on a flexible display
Table 2. Imaging conditions
Emission Color for ImagingExposure Time, msReadout Time, ms
Figure 13A |
Green |
3.2 |
250 |
Figure 13B |
Green |
1.6 |
250 |
Captured image of fingerprint on (A) glass substrate and (B) flexible substrate
p.s
SID 2018 지문인식 관련 논문 몇가지 http://blog.daum.net/serapeum/7594878
